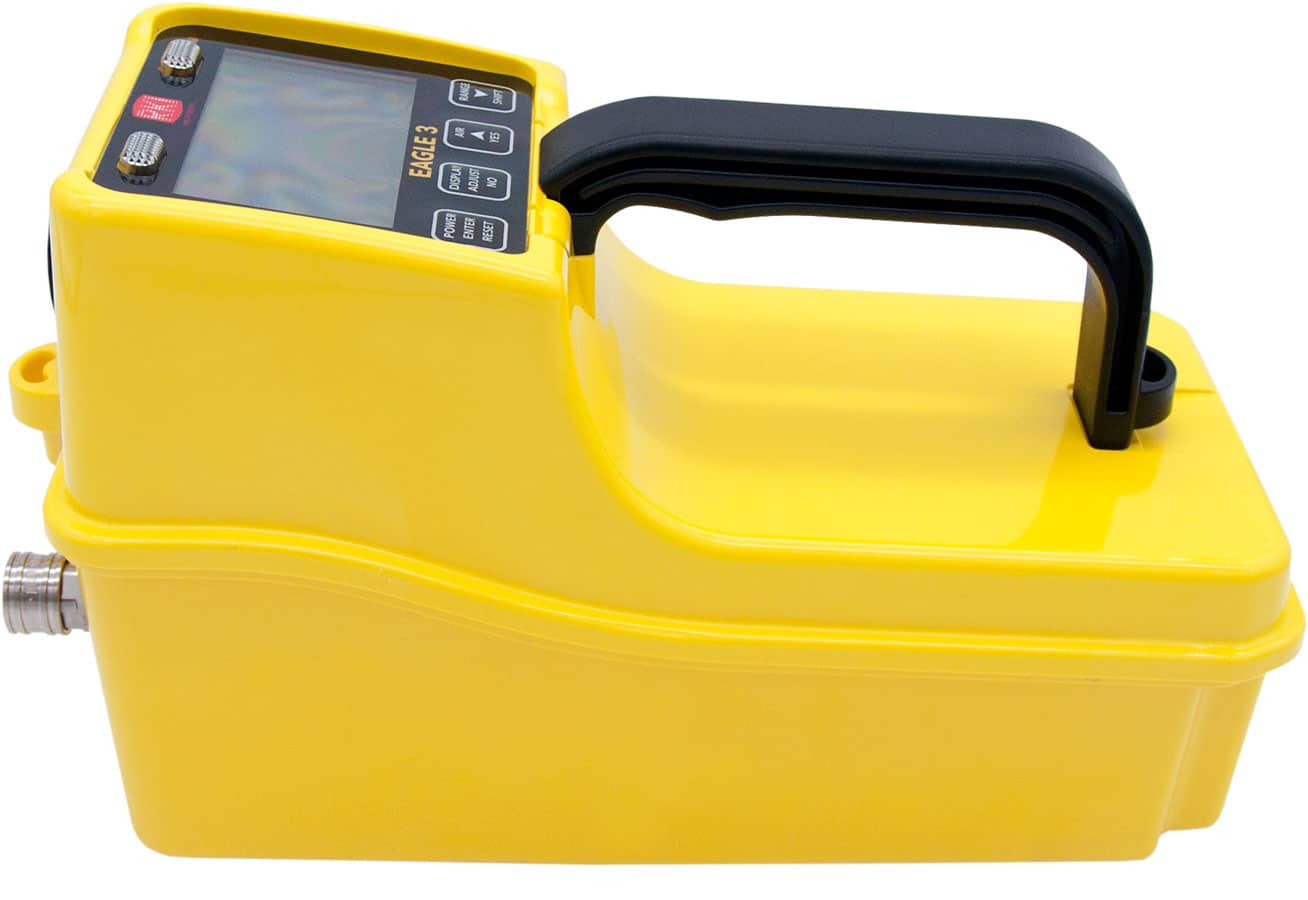

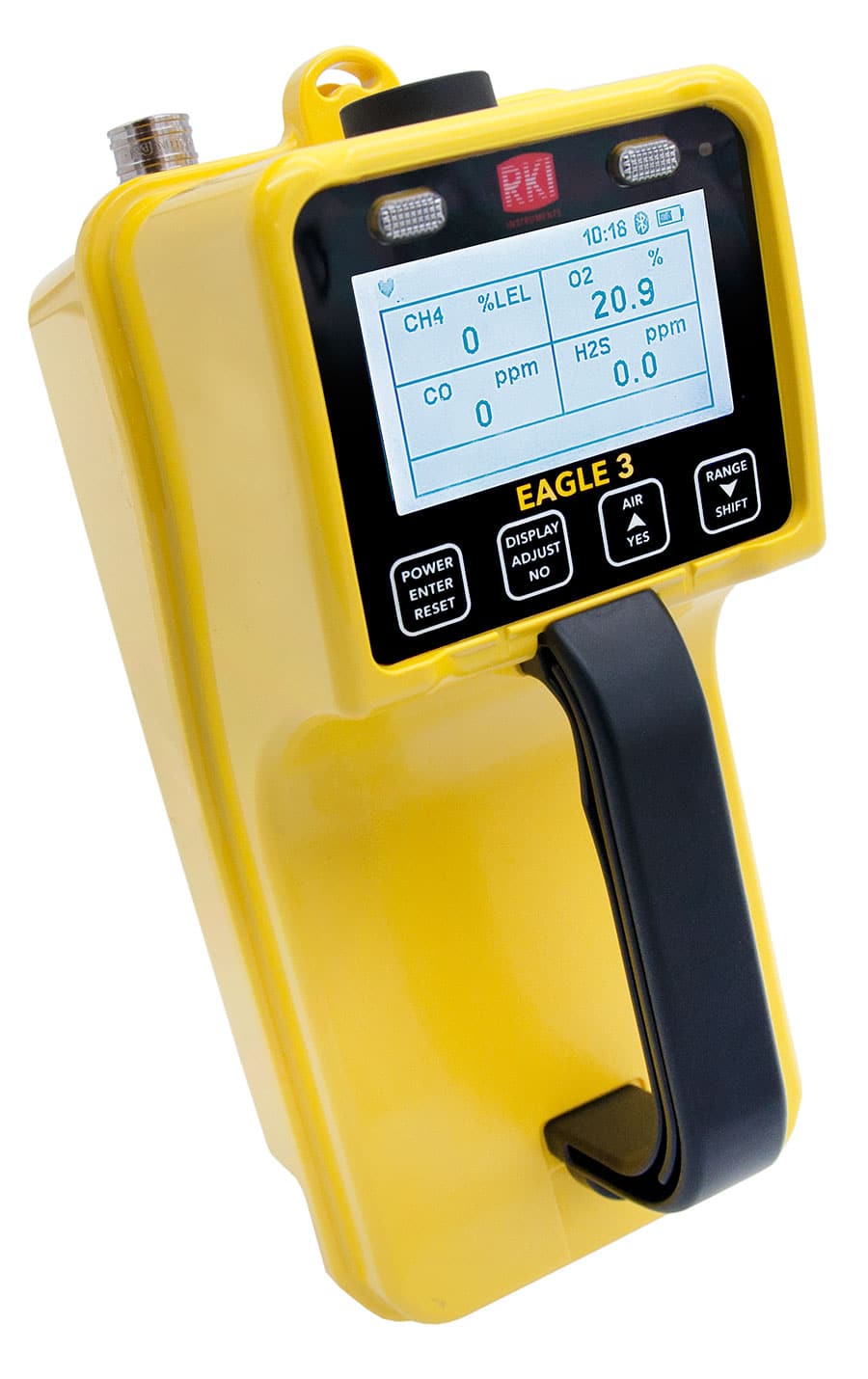

Name: Eagle 3 (coming soon)
Brand: RKI Instruments

Overview

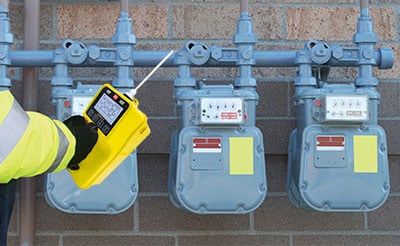

The EAGLE 3 is a powerful solution for just about any portable gas monitoring situation. Equipped with features that are not available on competitive units, the EAGLE 3 does more than standard confined space protection for LEL, O2, H2S and CO.

The EAGLE 3 available features include a PID sensor for detecting high or low ppm levels (0-40 & 0-4,000) of VOC gases; % volume capability for CH4 and H2 using a TC (thermal conductivity) sensor; PPM or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 (ppm or % volume), methane or hydrocarbons in LEL and % volume ranges; methane elimination feature for environmental applications; and a variety of super toxic gases. The EAGLE 3 has a strong internal pump with a low flow auto pump shut off and alarm, which can draw samples from up to 125 feet. This allows for quick response and recovery from distant sampling locations. A variety of accessories are also available to help satisfy almost any application such as long sample hoses, and dilution fittings, just to name a few. Datalogging and Bluetooth communication are available features for all sensors on all versions.

The EAGLE 3 offers easy access to controls such as auto calibration, alarm silence, demand zero, peak hold, and methane elimination. Each channel has two alarm levels plus TWA and STEL alarms for toxic channels. The two alarm levels are user adjustable and can be latching or self resetting.

Specialty Sensors

The PID sensor is capable of detecting high or low ppm levels (0-40 & 0-4,000) of VOC gases. Other smart sensors include % volume capability for CH4 and H2 using a TC (thermal conductivity) sensor; ppm or LEL hydrocarbon detection at the push of a button; infrared sensors for CO2 (ppm or % volume), methane or hydrocarbons in LEL and % volume ranges; Optional LEL / ppm H2 specific sensor, methane elimination feature for environmental applications; and a variety of super toxic gases. EAGLE 3 is a powerful instrument that does more than just offer the standard confined space protection for LEL, O2, H2S and CO. Made In U.S.A

PID (Photoionization Detector)
- Low or high range for VOC detection
- Humidity and contamination resistant
Infrared (IR) CO2, %LEL/%vol CH4, %LEL/%vol HC
Thermal Conductivity (TC) % Vol. H2, % Vol. CH4
Smart toxic, plug and play sensors NH3, AsH3, Cl2, HCN, PH3, SO2, and more

Specifications

Enclosure	Weatherproof resistant, RFI / EMI coated high impact polycarbonate-PBT blend. Can operate in 2.0” of water without leakage. Ergonomically balanced with rugged top mounted handle. Water & dust resistant equivalent to IP54.
Dimensions	10.4” L x 4.6” W x 6” H
Weight	3.5 lbs (standard 4 gas with batteries).
Detection Principle	Catalytic combustion, Electrochemical, Infrared, Photoionization detector, and Thermal conductivity
Sampling Method	Powerful, long-life internal pump (over 6,000 hours) can draw samples over 125 feet. Flow rate approximately 2.0 SCFH.
Display	Graphic LCD type display. Capable of displaying up to 6 channels simultaneously. Backlit and viewable in outdoor sunlight
Bluetooth communication	BLE (Bluetooth Low Energy) for iOS and Android Phones
Alarms	2 Alarms per channel plus TWA and STEL alarms for toxics. The two alarms are fully adjustable for levels, latching or self reset, and silenceable.
Alarm Method	Buzzer 90 dB at 30 cm, four high intensity LED’s.
Controls	4 External glove friendly push buttons for operation, demand zero, and auto calibration. Buttons also access LEL/ppm, alarm silence, peak hold, TWA/STEL values, battery status, conversion factors, and many other features.
Continuous Operation	30 hours (Standard 4-gas version) Non-alarm operation from fully charged battery
Power Source	Li-ion rechargeable battery pack AC/DC charger included. 11.5 hours for full charge.
Operating Temp. & Humidity	-20°C to 50°C (-4°F to 122°F), 0 to 95% RH, non-condensing. (For most gases)
Environmental	IP-54
Response Time	30 Seconds to 90% (for most gases) using standard 5 ft hose.
Safety Rating	Intrinsically Safe, Class I, Div I, Groups A, B, C, D. Pending Approvals: CSA / CE / ATEX/ IECEx
Standard Accessories	Shoulder strap, hydrophobic probe, and 5 foot hose, internal hydrophobic filter, charger and cable for datalogging
Optional Accessories	• Dilution fitting (50/50) • Extension hoses
Warranty	Two year material and workmanship, one year for PID sensor. (Two months for 11.7 PID sensor)

Specifications subject to change without notice.

Parts

Coming Soon..

Gases & Detectable Ranges

Standard Confined Space Gases
Gas Detected	Detection Range
Combustible Gases (Methane as standard)	0 – 100% LEL
Oxygen (O2)	0 – 40.0% vol.
Carbon Monoxide (CO)	0 – 2,000 ppm
Hydrogen Sulfide (H2S)	0 – 200.0 ppm
PID Sensors
VOC	0 – 40,000 ppb
VOC	0 – 4,000 ppm
Hydrogen Specific
Hydrogen (H2)	0 – 100% LEL
Hydrogen (H2)	0 – 40,000 ppm
TC Sensors
Methane (CH4)	0 – 100% Vol.
Hydrogen (H2)	0 – 100% Vol.
IR Sensors
Carbon Dioxide (CO2)	0 – 20% Vol.
Methane (CH4)	0 – 100% LEL / 0 – 100% Vol. (autorange)
Hydrocarbons	0 – 100% LEL / 0 – 100% Vol. (autorange)
Toxic Sensors
Ammonia (NH3)	0 – 75 ppm
Carbon Monoxide (H2 comp)	0 – 2000 ppm
Chlorine (Cl2)	0 – 3 ppm
Chlorine Trifluoride (ClF3)	0 – 0.300 ppm
Disilane (Si2H6)	0 – 15.0 ppm
Fluorine (F2)	0 – 3.00 ppm
Hydrochloric Acid (HCL)	0 – 6.00 ppm
Hydrogen Bromide (HBr)	0 – 6.00 ppm
Hydrogen Cyanide (HCN)	0 – 15.0 ppm
hydrogen Fluoride (HF)	0 – 1.5 ppm
Hydrogen Sulfide (H2S)	0 – 1,000 ppm
Germane (GeH4)	0 – 0.800 ppm
Nitrogen Dioxide (NO2)	0 – 15.0 ppm
Nitric Oxide (NO)	0 – 100 ppm
Ozone (O3)	0 – 0.600 ppm
Phosphine (PH3)	0 – 1.00 ppm
Silane (SiH4)	0 – 15.0 ppm
Sulfur Dioxide (SO2)	0 – 100.0 ppm
Sulfur Dioxide (SO2)	0 – 6.00 ppm
